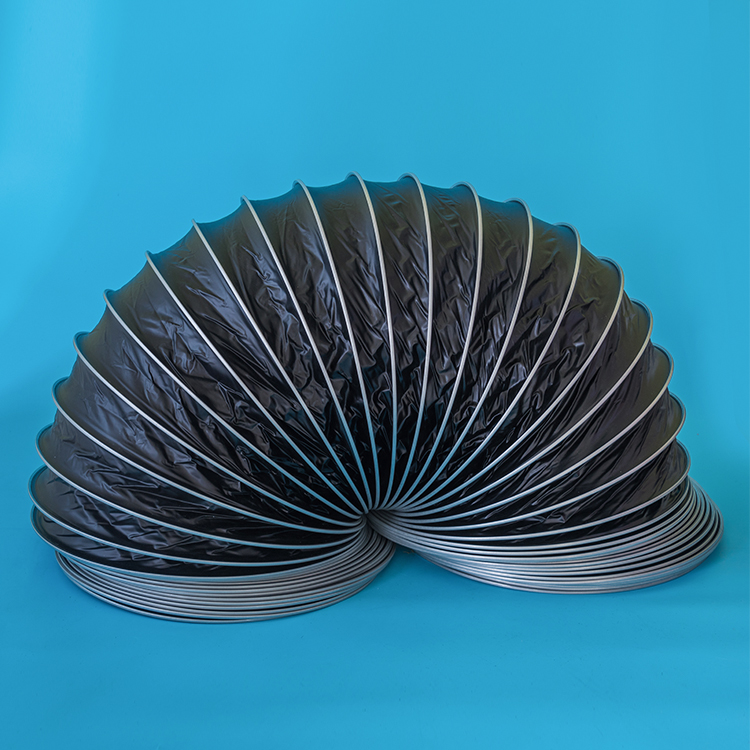

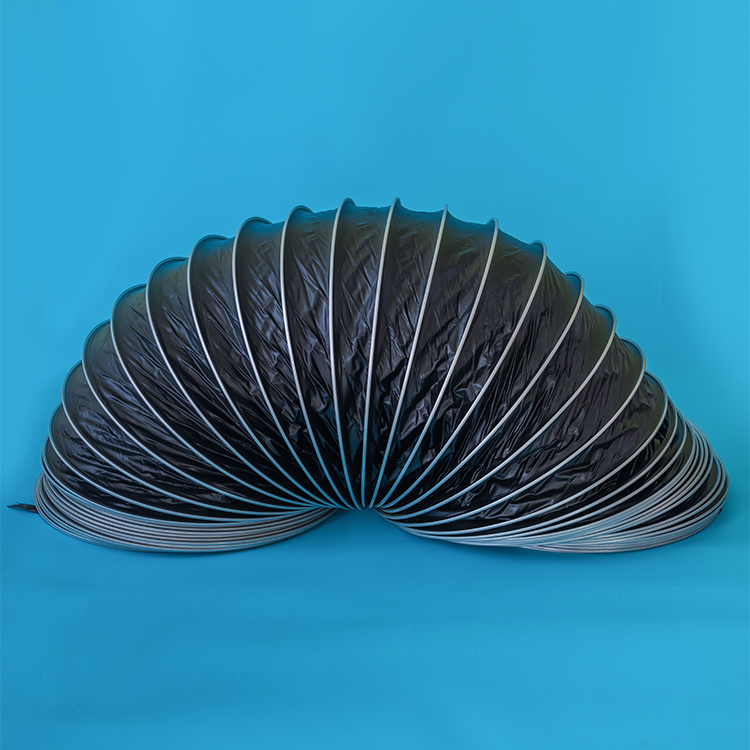

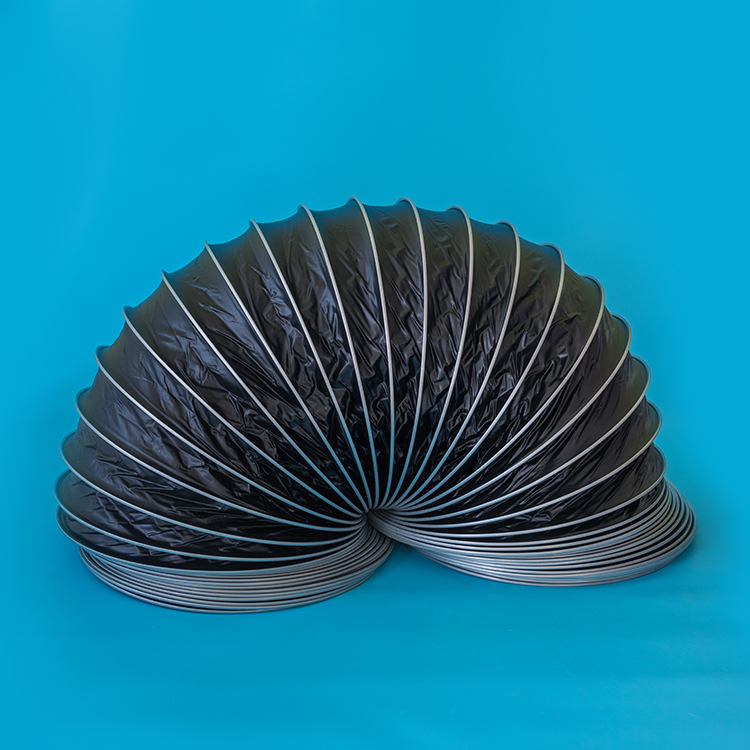

Reinforced PVC Flexible Duct
夹布PVC软管
|
Product Code |
XY-107 |
产品编码 |
XY-107 |
||
|
Construction |
1 PVC film |
材料 |
1层PVC |
||
|
Color |
White/Black/Grey |
颜色 |
白色/黑色/灰色 |
||
|
AvailableDiameter |
100mm-650mm (4"-25") |
直径范围 |
100mm-650mm (4"-25") |
||
|
Steel Wire |
Material |
Galvanized Iron |
钢丝 |
材质 |
镀锌铁皮 |
|
Diameter |
12mm |
直径 |
12mm |
||
|
Thickness |
0.4mm |
厚度 |
0.4mm |
||
|
StandardLength |
10m(Max) |
标准长度 |
10m(Max) |
||
|
Thickness |
0.07mm-0.10mm |
厚度 |
0.07mm-0.10mm |
||
|
Fire Resistance |
Class A2(Max) |
防火等级 |
A2级，难燃 |
||
|
CompressRatio |
1:15 |
压缩比 |
1：15 |
||
|
Temperature Range |
-20℃/+80℃ |
温度范围 |
-20℃/+80℃ |
||
|
Operating Pressure |
3000Pa |
最大压力 |
3000Pa |
||
|
Maximum Air Velocity |
最大风速 |
30m/s |
|||
PVC伸缩软管采用PVC膜复合膜绕帖高弹性螺旋形强韧钢丝制作而成。
拉直后自持性好、风阻小、清洁卫生，遇到高温或火警时，不产生有毒气体，适用于高、中、低压的空调及通风系统，安装便捷。
Made of spiral steel wire laminated with PVC film.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
